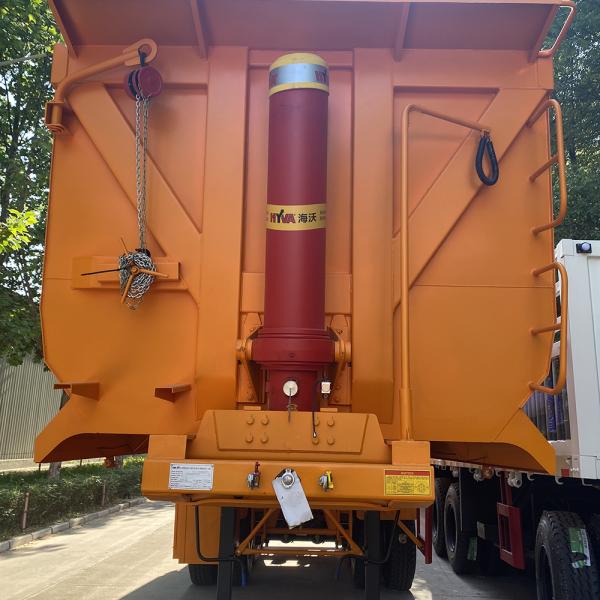

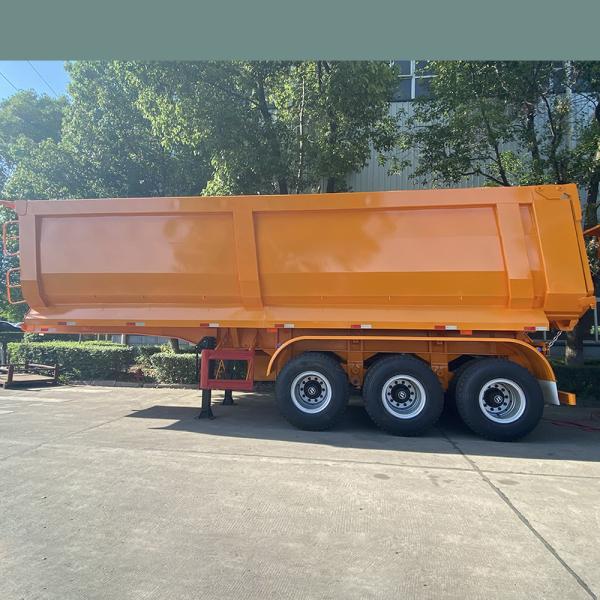

2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 9000*3050*3000mm

Max Payload : 60T

Place of Origin : Henan, China

Brand Name : CIMC

Product name : semi trailer end dump truck

Suspension : Mechanical Suspension

Axle : 13/16 Ton Fuwa/BPW/CIMC

Function : Stones and sands

Tire : 12.00R20

Landing Gear : Standard 28Ton

King pin : 90#/50#

Brake System : Dual Line Braking System

Keywords : Dump Tipper Semi Trailer

Main Beam : 500mm Height Q345B

Packaging Details : 2022 Africa Model Popular Mining Using U-shaped Semi Trailer End Dump Truck
1. Naked or waxed.
2. One unit was shipped separately, or Three units were packed together.

Port : SHANGHAI/QINGDAO/TIANJIN

Supply Ability : 2000 Unit/Units per Month semi trailer end dump truck

Price : $11,800.00 - $17,500.00/units

Contact Now

Product Description
2022 Africa Model Popular Mining Using U-shaped Semi Trailer End Dump Truck
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Item
Specification
Product name
semi trailer end dump truck
Size
12000*2600*2880mm.
Body Sheet
Side wall thickness: 8mm, floor thickness: 6mm;
Body material: wear resistant steel.
Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle
20T FUWA brand axle
Tire
12.00R20
Rim
8.5-20
Suspension
4 axles CIMC HUAJUN reinforced type
Lead spring
CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness.
Braking system
2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system
24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Shot blasting
Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.
Landing gear
28T, two side operation.
Chamber
Double type
King pin
(2') 50# or (3.5') 90#
Cylinder
Side tipper 120
Spare tire carrier
CIMC HUAJUN standard
Tool box
CIMC HUAJUN standard
Color
According to customers' requirements and RAL color code.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
--We are very strict about choosing raw materials, this is very important for the final products.
--Each working process has QC to inspect strictly.
--With years export experience, we help many customers to choose suitable trailers in local market.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Certifications

Our Honor：

--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...

Our Certifications:

--CE
--CCC
--ISO
--TUV
--SGS
...
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Packing&Shipping

Waxed Packing by RO-RO or Vessel

1. One unit was shipped separately；
2. Two or units were packed as one set ;

Shipping by Containers

1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Packing Case for Reference
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Factory History
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world through years' unremitting efforts.
By now, our trailers were shipped to more than 60 countries and area. Such as: The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.

More than 90% of our customers cooperated with our factory more than 15 years.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
To customers:
Appreciated for each customer's trust. We will never forget the mission and continue to provide reliable trailers.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Oversea Sales Team
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
Oversea Engineer Team
2022 Africa Model U-shaped Semi Trailer End Dump Truck with Stones and Sands Function
